Wheel Studs & Nuts by Size
Wheel Studs & Nuts

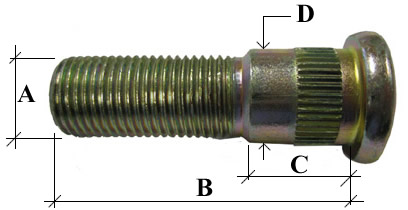

WHEEL STUDS & NUTS BY SIZE
PART No
A
B
C
D
B1755
1/2" UNF
1 1/2"
1/2"
9/16"
B3778
1/2" UNF
1 1/2"
3/8"
39/64"
B3863
1/2" UNF
1 7/8"
3/8"
5/8"
B1751
9/16" UNF
2"
3/4"
5/8"
B2369
5/8" UNF
2 3/8 "
15/16"
11/16"

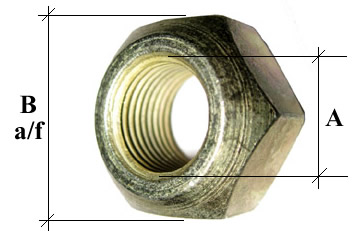

PART No
A
B
B3862
1/2" UNF
7/8"
B1756
1/2" UNF
1 1/16"
B2370
9/16" UNF
1 1/16"
B1754
5/8" UNF
1 1/16"
B5292
3/4" UNF
1 1/2"

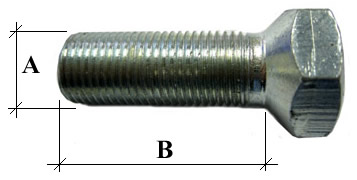

PART No
A
B
B905
M14 x 1.5
22mm
B906
M16 x 1.5
24mm
B7580
1/2" UNF
1"
B5477
9/16" UNF
1 1/2"
PART No
A
B
C
B5291
3/4" UNF
2 1/4"
1"

PART No
A
B
C
B3784
5/8" UNF
2 7/8"
2"
