John Deere - Front Axle, Hub, Wheel - STANDARD DUTY
|
Front
Axle, Hub, Wheel - STANDARD Duty
|
|
|
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
STANDARD DUTY axle models
only
IDENTIFICATION:
38mm
dia. King Pin ( HEAVY DUTY has 44.5mm King Pin)
JD1640,
1840, 2040, 2040S, 2140, (2250*),
2350, 2450, 2550, 2650, 2850
[* SEE 2250
LIGHT DUTY Page - (Round Hub Cap) model]
|

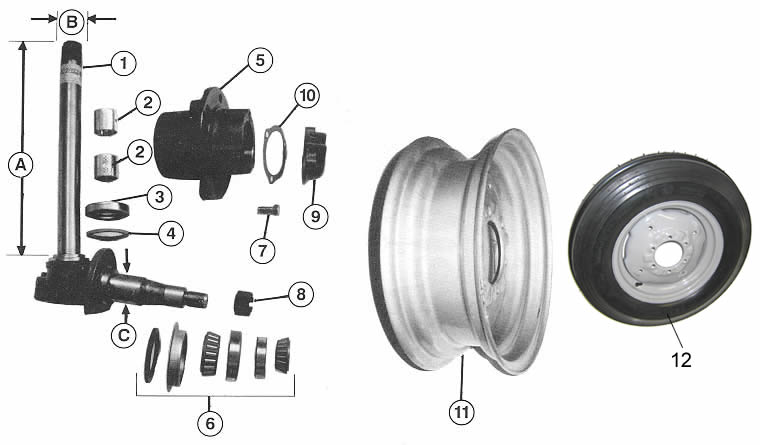

Ref.
|
PART
No.
|
REPLACES
|
DESCRIPTION
|
|
1
|
B7670
|
AL28222
|
Axle
A = 380mm B = 38mm C = 45.8mm
|
|
2
|
B5481
|
T21553
|
Bush
(38mm I.D.)
|
|
3
|
B5482
|
JD8410
|
Thrust
Bearing (38mm I.D.)
|
|
4
|
B5479
|
T15284
|
Lower
Seal
|
|
5
|
B7673
|
T21545
|
Front
Hub
|
|
6
|
B5474
|
X
|
Wheel
Bearing Kit (2 req) including WEAR RING
|
|
7
|
B5477
|
JD21
|
Wheel
Stud 9/16"
|
|
8
|
B7388
|
14H920
|
Castellated
Nut 1"
|
|
9
|
B7667
|
A1555R
|
Hub
Cap
|
|
10
|
B833
|
A1556R
|
Gasket
|
|
11
|
B6807
|
AL28212 (AR52506)
|
Wheel
to suit 600 x 16" tyire
|
|
B6808
|
JD3039
|
Wheel
to suit 750 x 16" tyre
|
12 |
B8807
|
|
WHEEL fitted with 6.00 X 16" TRI RIB AGRIC TYRE & TUBE |
|
B8808
|
|
WHEEL fitted with 7.50 X 16" TRI RIB AGRIC TYRE & TUBE |
|
Front
Axle, Hub, Wheel - STANDARD Duty
|
|
|
|
