MF - Chain Stabilisers
MF Chain Stabilisers
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only


REF
PART No.
REPLACES
DESCRIPTION
Length
APPLICATION
Min.
Max.

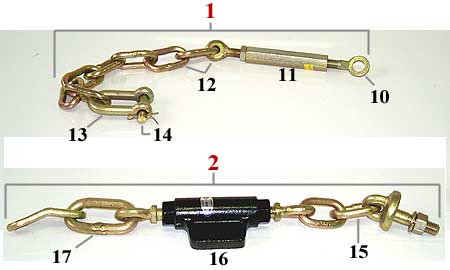

1
B175


Universal Chain
Stabiliser
44cm
90cm

Universal design suits most MF tractors - remove stay bracket pin use "D" shackle. Drop chain links for short applications
2
B148
1863260M93
Chain Stabiliser
51cm
63cm

MF148, 240, 250, 550

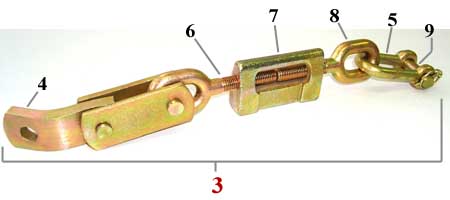

3
B481
1869332M91
53cm
61cm

MF165, 168, 175, 178, 185, 188, 265, 275, 285, 290, 360, 375,
383, 390, 393, 398, 399
When originally equipped with chain stabilisers
4
B482
1867186M1

Plate
5
B2727



Clevis
6
B1858
1661409M1

Eye Bolt R.H. Thread

7
B484
1661411M1

Turn Buckle
8
B483
1661408M1

Eye Bolt L.H. Thread
9
B73
52964M1

Clevis Pin 3/4" dia.
10
B2725



7/8" Eye L.H. Thread 3/4" U.N.C.

Suits B175
Chain Stabiliser
11
B2726



Centre Tube
12
B7478



Eye Chain Assembly
13
B2727



3/4" Clevis
14
B2747



3/4" Dia. Clevis Pin
5/8" Dia. Clevis Pin

(Your Option)
B1640


15
B150



Eye Chain Assy. 3/4" U.N.C.

Suits B148
Chain Stabiliser
16
B5130



Centre Tube
17
B149



Link Assy. L.H. 3/4" U.N.C.
MF Chain Stabilisers
