MF - Hood Panels
Hood Panels
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.


2A



Ref
Part No.
Replaces
Description
Application

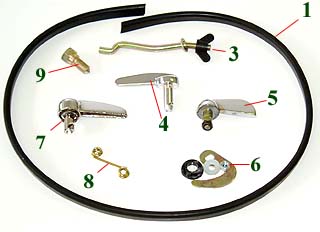

1
B1599
1944

Hood to Dash Sealing Rubber

Te20

B431
826881M1

MF35

2
B262
826812M91

Grille

2A
826817M92
Lower Front Apron
3
B5213
1884897M1

Hood Lock Rod & Wing Nut

4
B432
828223M91

Hood Top Door Lock Lever

MF35 from 141141 (with lever locks)

5
B1317
885359M91

Lock Lever for Battery Door

MF135-148
MF240

6
B1533
182367M2

Lock Hook Kit for battery door

7
B1531
885365M91

Lock Lever (DZUS) for hood top door

MF135, 148, 165, 175, 178, 185, 188

8
B1532
828224M1

Wire Latch for DZUS locks

Above models + all applications of DZUS fasteners (grille etc)

9
B5132
180718M1

Hood Pivot Bolt

Te20, MF35, 135, 165, 175

10
NLA




MF135, 148

11
B8528
897821M1

Lower Front Apron

B1287
880227M1

MF165, 175, 178, 185, 188

12
B6720
1886314M91

Grille 330mm high

MF135 to ser No. 400000

B6721
1861364M91

Grille 356mm high

MF135 from 400001 + MF148

B6722
1860167M91

Grille

MF165, 168, 175, 178, 185, 188

13
B6723
1882984M92

Grille Door 330mm high

MF135 to ser No. 400000

B6724
1861374M91

Grille Door 356mm high

MF135 from 400000 + MF148

B6725
963829M91

Grille Door

MF165, 168, 175, 178, 185, 188

14
B219
1882990M1

Top Nose Grille

MF135, 148, 165, 168, 175, 178, 185, 188

15
B1284
1882987M1

L.H. Side Panel - 500mm Long

MF135 to ser No. 400000

B1285
1882986M1

R.H. Side Panel - 500mm Long

B1384
1871738M1

L.H.Side Panel - 525mm Long

MF135 from 400001 + MF148

B1385
1871737M1

R.H. Side Panel - 525mm Long

16
B1601
880257M91

L.H. Side Panel

MF165 (175, 178 from 724936)

MF185, 188

B1602
880256M91

R.H. Side Panel

17
NLA




MF165, 175, 178, 185, 188

18
B436
1687819M91
1688814M92

Grille

MF240, 250, 254, 274

B440
1876198M91

MF265, 275, 290, 675, 690, 699

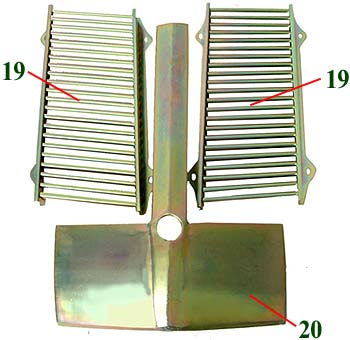

19
9523
9524
Pair of Grilles
Te20
20
9533
Front "T" Piece
Te20 Petrol & Kero (Modify starting hole for TeF20 diesel)

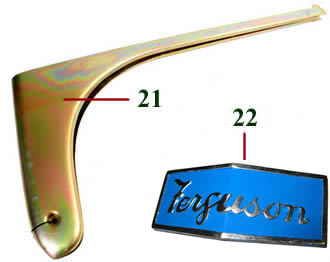

21

PAIR of Side Panels Te20
22

Front Badge Te20
Hood Panels
