Fiat Engine Kits & PartsNOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

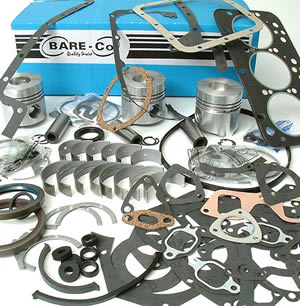

"EK" BASIC ENGINE KITS
- For overhaul of engine without removal from the tractor - ie. crankshaft NOT removed.
- Includes: Pistons, Rings, Conrod Brearings (state size reqd.), full engine Gasket Set.
- Liners included where originally fitted
(Wet sleeve models only).
"EKM" FULL ENGINE OVERHAUL KITS
Includes: all the above PLUS:
Main Bearings (state size reqd.), Thrust Washers, Crakshaft Seals. |
 |
ENGINE/
APPLICATION
|
ENGINE KIT
* See Note Below
|
PISTON (STD)
INCLUDING RINGS
|
RING SET
(1 CYL)
|
LINER
* See Note Below
|
WRIST PIN
BUSH
|
PAIR OF
CON ROD BEARINGS
|
|
3 CYLINDER ENGINES (see below for 4, 5 & 6 cyl) |
8035.01 Engine
3 Cyl 95mm bore |
450, 470 (95mm bore model) |
EK33
*
EKM33
|
B7100
=4637971
1900691
|
B7095
=1901496
|
B7104 *
=4599351
|
B7114
32mm
(1 1/4") I.D.
=4555699
(2 req
per rod) |
B7109
STD
=1901609
B7110
-0.254mm
(-.010")
=1901610 |
8035.02 Engine
3 Cyl 100mm bore |
450 (100mm bore only)
480, 500, 540, 446, 466 |
EK34
*
EKM34
|
B7101
=79037500
|
B7096
=1909172
1908737
|
B7105 *
=4653280
|
8035.04 Engine
3 Cyl 103mm bore |
566, 570, 580 |
EK88
*
EKM88
|
B7102
=1902430
1908748
|
B7097
=1909234
|
B7106 *
=4679201
|
B7115
34mm
(1.340") I.D.
=4754066
(2 req
per rod) |
8035.06 Engine
3 Cyl 100mm bore |
55-46, 55-56, 55-65, 45-66, 50-66, 55-66,
55-75, 45-76, 55-76, 55-85, 50-86, 55-88,
55-90 |
EK110
*
EKM110
|
|
|
|
B3067
38mm
(1 1/2") I.D.
=4766404
(1 req
per rod) |
B3068
STD
=1930181
B3069
-0.254mm
(-.010")
=1930182 |
8035.05 Engine
3 Cyl 104mm bore |
60-46, 60-56, 60-65, 60-66, 60-75, 60-76,
60-85, 60-86, 62-86, 60-88, 60-90, 60-93,
60-94 |
EK111
*
EKM111
|
|
|
|
CN3 Engine
3 Cyl 110mm bore |
650 |
N/A
|
N/A
|
|
|
B988
=8828445
(1 req
per rod) |
B7111
STD
=1901614
B7112
-0.254mm
(-.010")
=1901615 |
* LINERS NOT INCLUDED IN THESE ENGINE KITS (NOT ORIGINALLY FITTED) - ORDER SEPARATELY.
** LINERS INCLUDED (WET SLEEVE ENGINE).
ENGINE/
APPLICATION
|
ENGINE KIT
* See Note Below
|
PISTON (STD)
INCLUDING RINGS
|
RING SET
(1 CYL)
|
LINER
* See Note Below
|
WRIST PIN
BUSH
|
PAIR OF
CON ROD BEARINGS
|
|
4, 5 & 6 CYLINDER ENGINES |
615.000 Engine
4 Cyl 85mm bore |
411R, 415 Diesel
|
EK32
*
|
B7099
=1909866
|
B7094
=1909861
|
B7103 *
=561212
|
B7113
=561276
(1 req
per rod) |
B7107
STD
=1909856
B7108
-0.254mm
(-.010")
=1909857 |
8045.01 Engine
4 Cyl 95mm bore |
550 |
EK87
*
EKM87
|
B7100
=4637971
1900691
|
B7095
=1901496
|
B7104 *
=4599351
|
B7114
32mm
(1 1/4") I.D.
=4555699
(2 req
per rod) |
B7109
STD
=1901609
B7110
-0.254mm
(-.010")
=1901610 |
8045.02 Engine
4 Cyl 100mm bore |
600, 640, 666, 670, 680 |
EK35
*
EKM35
|
B7101
=79037500
|
B7096
=1909172
1908737
|
B7105 *
=4653280
|
8045.04 Engine
4 Cyl 103mm bore |
766, 780 |
EK36
*
EKM36
|
|
|
|
B7115
34mm
(1.340") I.D.
=4754066
(2 req
per rod) |
8055.04 Engine
5 Cyl 103mm bore |
880/5 |
EK89
*
EKM89
|
8045.06 Engine
4 Cyl 100mm bore |
65-46, 65-56, 70-56, 70-65, 65-66, 70-66,
70-75, 70-76, 72-85, 70-86, 72-86, 65-88,
70-88, 65-90, 70-90, 65-93, 72-93, 65-94,
72-94, L65 |
EK112
*
EKM112
|
B3061
=1930241
|
|
|
B3067
38mm
(1 1/2") I.D.
=4766404
(1 req
per rod) |
B3068
STD
=1930181
B3069
-0.254mm
(-.010")
=1930182 |
8045.05 Engine
4 Cyl 104mm bore |
85-55, 80-66, 80-75, 80-76, 82-85, 82-86,
80-88, 80-90, 82-93, 82-94, L75 |
|
|
|
|
CO3 Engine
4 Cyl 110mm bore |
750, 880 |
|
|
|
|
B988
=8828445
(1 req
per rod) |
B7111
STD
=1901614
B7112
-0.254mm
(-.010")
=1901615 |
8065.02 Engine
6 Cyl 100mm bore |
980, 1000 |
|
|
|
|
B7114
32mm
(1 1/4") I.D.
=4555699
(2 req/ rod) |
B7109
STD
=1901609
B7110
-0.254mm
(-.010")
=1901610 |
8065.04 Engine
6 Cyl 103mm bore |
1000 S , 1180 |
|
|
|
|
B7115
34mm
(1.34") I.D.
=4754066
(2 req/ rod) |
CP3 Engine
6 Cyl 110mm bore |
1300, 1300 S |
N/A |
N/A |
|
|
B988
=8828455
(1 req
per rod) |
B7111
STD
=1901614
B7112
-0.254mm
(-.010")
=1901615 |
* LINERS NOT INCLUDED IN THESE ENGINE KITS (NOT ORIGINALLY FITTED) - ORDER SEPARATELY.
** LINERS INCLUDED (WET SLEEVE ENGINE).
|
