Lighting
LIGHTING
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

REF
PART No.
REPLACES
DESCRIPTION
APPLICATION

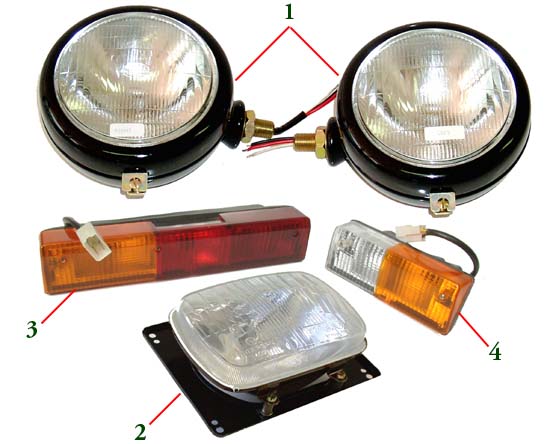

1
5118926
LH Headlamp
450, 480, 500, 540, 550, 600, 640, 650, 750, 850, 1000, 1000S, 1300, 1300S
5118925
RH Headlamp
2
5138349
5120073
5120074
Headlamp
466, 566, 666, 766, 570, 670, 580, 680, 780, 880, 980, 1180, 1280, 1380, 1580,
65-46, 670-56, 60-66, 65-56,
55-66, 65-66, 70-66, 80-66,
70-86, 82-86,
55-90, 60-90, 65-90, 70-90, 80-90, 85-90, 90-90, 95-90, 100-90, 110-90, 115-90, 130-90, 140-90, 160-90, 180-90,
60-93, 65-93, 72-93, 82-93,
60-94
3
4997266
LH Tail Lamp
466, 566, 666, 766, 570, 670, 580, 680, 780, 880, 980, 1180, 1280, 1380, 1580,
55-46, 65-46, 60-56, 70-56, 60-66, 65-56,
45-66, 50-66, 55-66, 65-66, 70-66, 80-66,
70-86, 82-86,
55-90, 60-90, 65-90, 70-90, 80-90, 85-90, 90-90, 95-90, 100-90, 110-90, 115-90, 130-90, 140-90, 160-90, 180-90,
60-93, 65-93, 72-93, 82-93,
60-94, 65-94, 72-94, 82-94, 88-94
4997267
RH Tail Lamp
4
4999858
LH
Fender mounted
Front + Park
Indicator Lamp
4999859
RH
