Bare Co - Ford

Ford - Brakes

Brakes

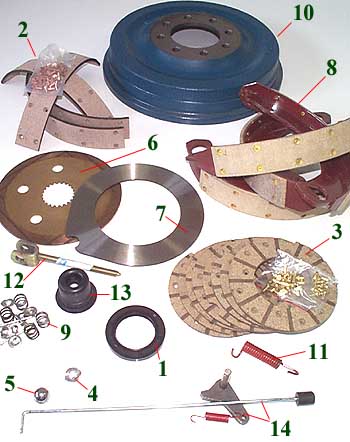

NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

Ref	Part No.	Replaces	Description		Application
1	B3878	EIADKN2773A	Seal		Fordson Major Power Major with drum brakes i.e. 1952 to 1960
2	B1849	4 off 957E2021B	Brake Lining Set [suits 2 wheels]		Dexta Super Dexta
3	B3877	8 off EIADDN2284	Disc Lining Kit [suits 2 wheels]		Super Major with disc brakes i.e. 1960 onwards
4	B5184	C5NN2N320A	Disc Brake Spring		All Models with Disc Brakes [wet or dry] i.e. Super Major to 7710
5	B462	D5NN2N141A 184707B	Disc Brake Ball
6	B5288	C5NN2A097B 81802479	Early Version Disc [Narrow Face]		4000, 4100, 4600, 3910, 4110, 4410, 4610, 3930 4130, 4330, 4630, 4140, 4340
	B6288	E9NN2A097AA 3983209	Late Version Disc [Wide Face]
	B2805	C7NN2A097B 81818854	Early Version Disc [Narrow Face]		5000, 7000, 5600, 6600, 6700, 7600, 7700, 5610, 6610, 6710, 7610, 7710, 7810, 7910, 8010, 8210, 7740, 7840, 8240, 8340
	B1805	E9NN2A097BA 3989830	Late Version Disc [Wide Face]
7	B5289	C5NN2N315B 1802536	Intermediate Disc [steel]		4000, 4100, 4600, 3910, 4110, 4610, 3930 4130, 4630
7	B2806	E6NN2N315AA 3956598	Intermediate Disc [steel]		5000, 7000, 5600, 6600, 6700, 7600, 7700 5610, 6610, 6710, 7710, 7910, 8210
8	B4842	E27N2019E	Bonded Brake Shoe Set [suits 2 wheels]		Fordson Major Power Major with drum brakes i.e. 1952 to 1960
	B1549	C5NN2218E 1814342	38mm wide	Brake Shoe Set [4 shoes]	2000, 3000 from Dec 1966
	B7849	C5NN2218F 3924863	51mm wide	Brake Shoe Set [4 shoes]	2000, 3000 from Dec 1966, 2600, 3600, 2610, 3610 (51mm wide shoes)
9	B461	Various	Fixing Set (2 req.)
10	B1261	C5NN1126E 1811559	Brake Drum		2000, 3000, 2600, 3600, 2610, 3610 (All)
11	B5290	C5NN3A346B 1815616	Spring [Red] 4 req.
12	B5135	C7NN2466A 1818790	Brake Pedal Rod
13	B7352	E7NN2N336AA 599903	Brake Rod Seal		All Models with Disc Brakes from 4000 to 8210
14	B1414	Various	Hand Brake Repair Kit		All Models from 2000 to 6610
