Ford - Steering - Radius Rod Front Axle
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.

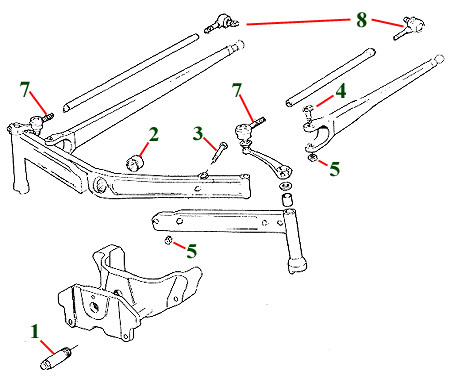

RADIUS ROD FRONT AXLE MODELS
MANUAL STEERING
|
Ref
|
Part No.
|
Replaces
|
Description
|
Application
|
|
1
|
B3866
|
C5NN3127B
1812461
|
Pivot
Pin 45mm dia
|
2000,
3000
up to 7/1970
|
|
B3867
|
C7NN3127D
1822711
|
Pivot
Pin 51mm dia
|
2000,
3000
from 8/1970
2600,
3600, 4100, 2610
3610, 3910, 4110
|
|
2
|
B3870
|
C5NN3153C
|
Pivot
Bush 45mm ID
|
2000,
3000
up to 7/1970
|
|
B3871
|
C7NN3153B
1822712
|
Pivot
Bush 51mm ID
|
2000,
3000
from 8-1970
2600,
3600, 4100, 2610
3610, 3910, 4110
|
|
3
|
B2153
|
|
Axle
Beam Bolt
|
Dexta,
Super Dexta
2000, 3000, 2600, 3600
4100, 2610, 3610, 3910, 4110
|
|
4
|
B2152
|
957E3415A
|
Radius
Rod Bolt
|
|
5
|
B2154
|
379223S43
|
Nut
|
|
6
|
B3302
|
C5NN3N303A|
1802878
|
Universal
Tie Rod End Boot
|
|
7
|
B2794
|
957E3290B
1802867
|
Front
Ball Joint
( 2 required )
|
All
Above-Manual Steer
|
|
8
|
B2795
|
957E3307B
1717427
|
Rear Ball Joint ( 2 required )
|
All
Above-Manual Steer
|
|
