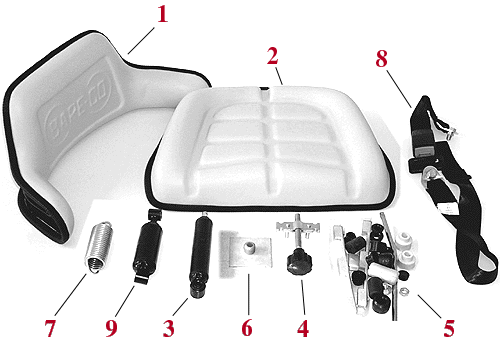

REF
|
PART
No.
|
DESCRIPTION
|
APPLICATION
|
|
1
|
B7492
|
Backrest
Assembly - BLACK
|
B9151
forklift seat
|
|
B1220
|
B8642 Standard
rear suspension seat
|
|
1a
|
B9650
|
Backrest
Assembly - BLACK
|
BARE-Co B9642, B9643, B9644 rear suspension seats |
|
2
|
B5519
|
Lower
Cushion + Pan - BLACK
|
BARE-Co B8642, B9642, B9643, B9644 rear suspension seats |
|
B7491
|
Lower Cushion + Pan - BLACK
|
BARE-Co B9151 Fork Lift seat |
|
Cushion / Back assembly - BLACK |
BARE-Co B9645 (narrow) seat |
|
3
|
B7406
|
H.D.
(35mm dia) Shock Absorber (eye one end - pin
hole other end)
|
All
BARE-Co / BARE-Co - GRAMMER rear suspension seats
|
|
4
|
B7485
|
Weight
regulating knob Kit
|
x
|
|
5
|
B7487
|
Repair
Kit containing plastic rollers/slides/lever etc
for rear and lower slides
|
x
|
|
6
|
B5463
|
Delrin
roller
|
Old
type BARE-Co - GRAMMER lower suspension seats i.e. with
coil extension springs
|
|
7
|
B1501
|
Main
spring
|
BARE-Co
B8642, B9642, B9643, B9644
rear suspension seats
|
|
B8060
|
Outer
spring (light)
|
x
|
|
8
|
B8152
|
Seat
Belt Kit approved to EEC standard
|
Universal
|
|
9
|
B1636
|
Shock
Absorber (160mm closed eye to eye)
|
Latest
design B8150/B8180 seats as illustrated
|
10 |
|
Knob |

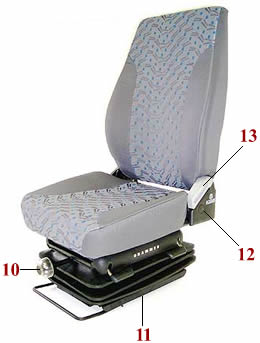

Fits B8180 / B9180 High Back Velour Platform Mount Cab Seat as illustrated |
11 |
|
Nylon Roller Kit |
12 |
|
Hinge Cover Kit (Pair) |
13 |
|
Handle |
14 |
|
Lower Cushion + Pan |

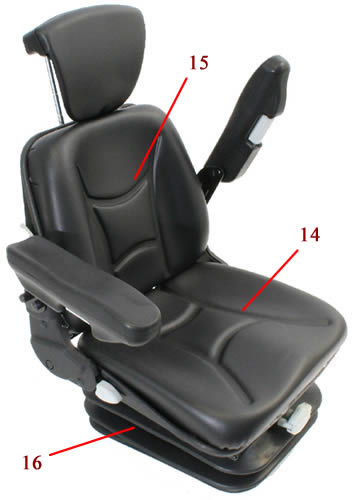

Fits B9646 Velour Platform Mount Cab Seat as illustrated |
15 |
|
Backrest Assembly |
16 |
|
Suspension Assembly |
