Top Link Pins
Minimum
Steel Spec is S1040 - Zinc Plated
|
LINKAGE CATEGORY
|
DIAMETER
|
PART No
|
USABLE
LENGTH
|
|
Usable length
is from under the head to the edge of the hole.
|
|
|
CAT
0
|
5/8"
(16mm)
|
B6831
|
3"
|
(76mm)
|
|
CAT
1
|
3/4"
(19mm)
|
B73
|
|
B75
|
3
3/8"
|
(86mm)
|
|
B74
*
Most Popular cat 1 pin
|
3
7/8"
|
(100mm)
|
|
B77
|
4
3/4"
|
(120mm)
|
|
CAT
2
|
1"
(25.4mm)
|
B1200
|
3"
|
(76mm)
|
|
B76
|
3
7/16"
|
(88mm)
|
|
B81
*
Most Popular cat 2 pin
|
4
1/2"
|
(115mm)
|
|
B80
|
5
3/8"
|
(137mm)
|
|
CAT
3
|
1
1/4" (31.75mm)
|
B2597
|
4
1/2"
|
(115mm)
|
|
Usable length
is from under the head to the edge of the hole.
|
|
CAT
4
|
1
3/4" (45mm)
|
B6592
|
7
1/4"
|
(185mm)
|
|
Heat treated Grade 8 - HT.
|
|
B6593
|
9
1/4"
|
(235mm)
|
|
CAT
1 - CAT 2
|
3/4"
(19mm)
1" (25.4mm)
|
B2971
|
|
|
CAT
1 - CAT 2
|
3/4"
(19mm)
1" (25.4mm)
|
|
For Tractors: VICON, P.Z., J.F., KRONE, NEW HOLLAND,
CLAAS, DEUTZ FAHR
|
*
Suits most standard applications (Suggested Stock)
|
PART
No
|
POPULAR
APPLICATIONS
|
|
B73
|
Tractor
End Only - FERGUSON Te20,
FORD Cat 1, DAVID BROWN
|
|
B75
|
Implement
End - Cat 1 IMPLEMENTS (can use B74 if required)
|
|
B74
|
|
Tractor
End - All Cat 1 MF TRACTORS.
|
|
|
B77
|
Special
Long Pin - Suits DEXTA
Centre Lug
|
|
B70
Suits FERGUSON TE20
|

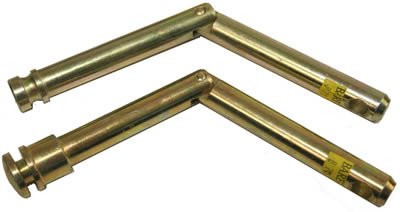

B71
Suits ALL MF Models
|
|
