Quick Hitch
Quick Hitch
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

LOWER QUICK HITCH BALLS
STANDARD TYPE

B6334 Cat. 2 Ball (56mm O.D.) with Cat. 1 hole (7/8" - 22mm I.D.)

B6335 Cat. 2 Ball (56mm O.D.) with Cat. 2 hole (1 1/8" - 28.6mm I.D.)

B6330 Cat. 3 Ball (64mm O.D.) with Cat. 2 hole (1 1/8" - 28.6mm I.D.)

B6332 Cat. 3 Ball (64mm O.D.) with Cat. 3 hole (1 7/16" 36.5mm I.D.)

B6353 Cat. 4 Ball (85mm O.D.) with Cat. 3 hole (1 7/16" 36.5mm I.D.)

B6352 Cat. 4 Ball (85mm O.D.) with Cat. 4 hole (2" / 51mm I.D.)
WING TYPE



B6336 Cat. 2 Ball (56mm O.D.) with Cat. 2 hole (1 1/8" - 28.6mm I.D.)

B6337 Cat. 3 Ball (64mm O.D.) with Cat. 2 hole(1 1/8" - 28.6mm I.D.)

B6338 Cat. 3 Ball (64mm O.D.) with Cat. 3 hole (1 7/16" 36.5mm I.D.)
TOP LINK - QUICK HITCH END

B594

Cat. 2 CLAW "A" = 50.8mm

1 1/4" R.H. thread (UNC)
Fits BARE-Co B1 & B5 Top Link and
FORD, JD, CHAMBERLAIN - 1 1/4" UNC Top Links

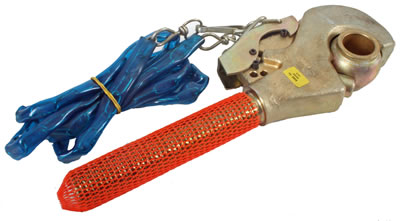

B2424

Cat.3 CLAW

1 3/8" R.H. thread (UNC)
Fits BARE-Co Jumbo Top Links

Includes Cat 3 Ball.
For Cat 2 implements order
B6331 Cat 2 Ball


TOP QUICK HITCH BALLS

METRIC O.D.
B1231 Cat. 2 Ball (50mm O.D.) with Cat. 2 hole (1" - 25.4mm I.D.)

IMPERIAL O.D.
B5129 Cat. 2 Ball 2" (50.8mm O.D.) with Cat. 2 hole (1" - 25.4mm I.D.)

B6331 Cat. 3 Ball (60mm O.D.) with Cat. 2 hole (1" - 25.4mm I.D.)

B6333 Cat. 3 Ball (60mm O.D.) with Cat. 3 hole (1 1/4" - 31.8mm I.D.)

B6350 Cat. 4 Ball (79mm O.D.) with Cat. 3 hole (1 1/4" - 31.8mm I.D.)

B6351 Cat. 4 Ball (79mm O.D.) with Cat. 4 hole (1 3/4" - 45mm I.D.)
