Hydraulic Levelling Boxes (Tilt Cylinders)


Application
Model
Part No.
Daedong
CK20, CK25, CK30
Ford
 2000, 3000, 2600, 3600, 2310, 2610
Iseki
1533
1528
Kioti
 CK20, CK25, CK30
Kubota
 L2250, L2350, L2500, L2550, L2600, L2650, L2800, L2850, L3000, L3130, L3400, L3430, L4400, L5030,
Grand L Series
M4030,
M4700, M4800, M4900, M5400, M5700, M6800,
M8540, M9000, M105S
B2410, B3030, B7400, B7410, B7500, B7510, B7610, B7800
Massey Ferguson
TO35, MF35, MF135, MF150, MF165STD, MF230, MF240, MF245, MF250, 1533
1528
New Holland
TC35A, TC29DA, TC40DA, TC30, TC55DA
B9409
Flow Control Valve
1/2" NPTF Ports

Hydraulic Levelling Boxes (Tilt Cylinders)

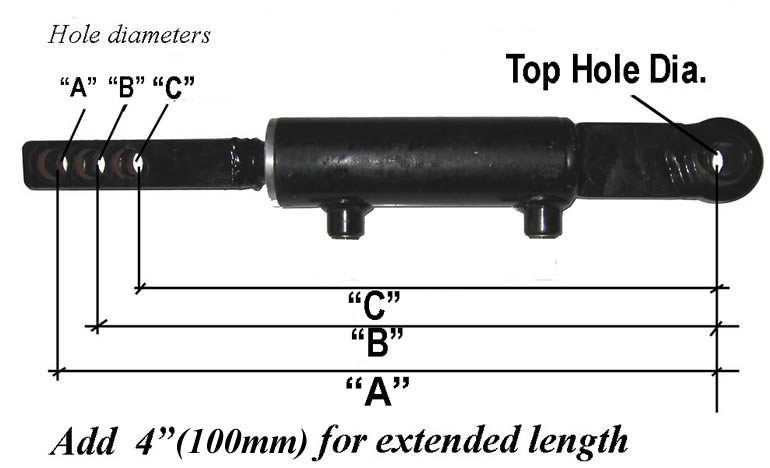

DIMENSIONS

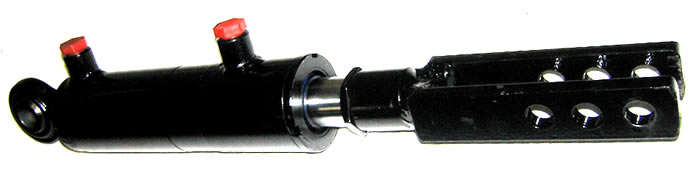

Tilt Cylinder ASSEMBLY
Fork
Replacement
Seal Kit
Cylinder Body Less Fork
Cylinder Body
Length
"A"
"B"
"C"
Fork Inside Width
B8117
7/8" top hole diameter.
305 mm (12")
Top hole to
end of shaft
18 1/2" (470mm)
Hole Dia.
16mm (5/8")
16" (406 mm)
Hole Dia.
14.3mm (9/16")
15" (380mm)
Hole Dia.
16mm (5/8")
7/8"
(22mm)
B8123
3/4" top hole diameter.
305 mm (12")
Top hole to
end of shaft
18 1/2" (470mm)
Hole Dia.
16mm (5/8")
16" (406 mm)
Hole Dia.
14.3mm (9/16")
15" (380mm)
Hole Dia.
16mm (5/8")
B8124
7/8" top hole diameter
and 5/8" with included
bush.
325 mm (12.8")
Top hole to
end of shaft
22" (559 mm)
Hole Dia.
16mm (5/8")
19" (483mm)
Hole Dia.
16mm (5/8")
2 holes only
B8129
16.7mm Dia. Top hole
Angled clevis ends.
300 mm (12")
Top hole to
end of shaft
16 1/2" (420mm)
Hole Dia.
12.7mm (1/2")
One hole only
One hole only
B8144
7/8" top hole diameter
and 5/8" with included
bush.
369 mm (14.5")
Top hole to
end of shaft
22" (559 mm)
Hole Dia.
19mm 3/4")
20.5" (521mm)
Hole Dia.
19mm 3/4")
2 holes only
1/1/4"
(32mm)
