John Deere - Front Axle, Hub, Wheel - LIGHT DUTY
|
Front
Axle, Hub, Wheel - LIGHT DUTY
|
|
|
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
LIGHT DUTY
axle models only
IDENTIFICATION:
Round Hub Cap, NO Dust Shield on Stub
Axle, Keyed Top Arm ALL:
940, 1020, 1030, 1040
OPTIONAL FOR 1120, 1130, 1140, 1630, 2020, 2120, 1550, 1750, 1850, 1950, 2150, 2250
|

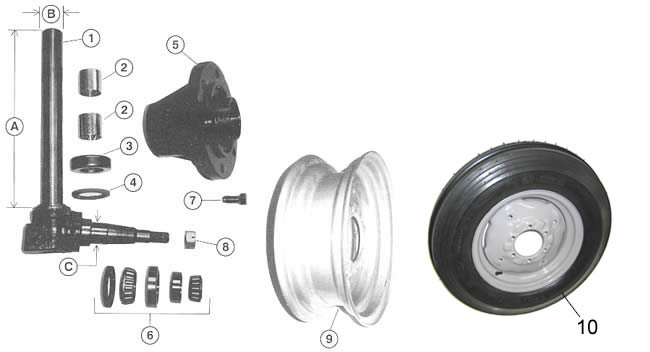

Ref.
|
PART
No.
|
REPLACES
|
DESCRIPTION
|
|
1
|
B7668
|
AR58606 (AR49589 - AT23636)
|
Standard Clearance A = 300mm B = 35mm C = 35mm
|
|
B7683
|
AR58607 (AR49590)
|
High Clearance A = 388mm B = 35mm C = 35mm
|
|
2
|
B5470
|
T21539
|
Bush (35mm I.D.)
|
|
3
|
B5471
|
JD8407
|
Thrust Bearing (35mm I.D.)
|
|
4
|
B6673
|
M2282T
|
Lower Seal
|
|
5
|
B7672
|
R47076
|
Hub (Round Cap Type)
|
|
6
|
B5472
|
x
|
Wheel Bearing Set (1 wheel)
|
|
7
|
B5477
|
JD21
|
Wheel Stud 9/16" (screw-in type)
|
|
8
|
B3774
|
14H902
|
Castellated Nut 3/4"
|
|
9
|
B6807
|
AL28212 (AR52506)
|
Wheel to suit 600 x 16" tire
|
|
B6808
|
JD3039
|
Wheel to suit 750 x 16" tire
|
10 |
B8807
|
|
WHEEL fitted with 6.00 X 16" TRI RIB AGRIC TYRE & TUBE |
|
B8808
|
|
WHEEL fitted with 7.50 X 16" TRI RIB AGRIC TYRE & TUBE |
|
