John Deere - Rear Axle - PTO
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
|
Ref.
|
PART
No.
|
REPLACES
|
DESCRIPTION
|
APPLICATION
|
|

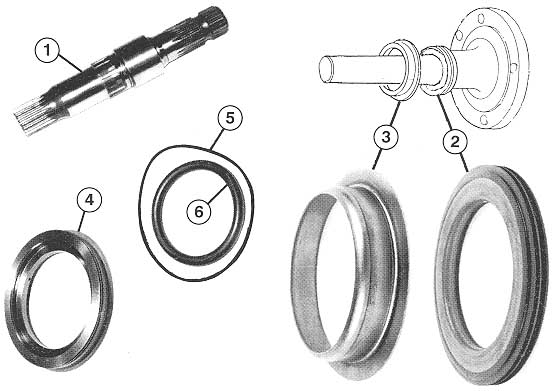

1
|
B7615
|
AT29707
|
PTO
SHAFT 540 rpm
1 3/8" x 6 SPLINE
|
NOT Suitable for tractors with SINGLE SPEED PTO.
1020,
2020
with flangeless shaft as illustrated
1120, 2120, 1030, 1130, 1630,
1830, 2030
2130, 840, 940, 1040, 1140, 1640, 1840
2040, 2040S, 2140, 1350, 1550, 1750
1850, 1950, 2250, 2450, 2650, 2850 |
|
NLA
|
T30803
|
PTO
SHAFT 1000 rpm
1 3/8" x 21 SPLINE
|
|
B7617
|
R41756
(R41752)
|
PTO
SHAFT 540 rpm
1 3/8" x 6 SPLINE
|
3020
from serial no. 123000
4020 from serial no. 201000
3120,
3030, 3130, 4030, 4230, 4430, 3040
3140, 3340, 4040, 4240, 4440, 3150, 3350, 4350
|
|
B7618
|
T28672
(R80744)
|
PTO
SHAFT 1000 rpm
1 3/8" x 21 SPLINE
|
|
2
|
B7639
|
AT20703
|
REAR
AXLE OIL SEAL
|
1020,
1120, 2020, 2120, 1030, 1130, 1630, 1830, 2030, 2130,
840, 940, 1040, 1140
1640, 1840, 2040, 2040S, 2140, 1350
1550, 1750, 1850, 1950
|
|
3
|
B7640
|
L35542
(T21429)
|
REAR
AXLE SEAL SLEEVE
|
|
4
|
NLA
|
L31017
(L28027)
|
BRAKE
PISTON
|
3030,
3120, 3130
|
|
5
|
NLA
|
T30349
|
BRAKE
PISTON SEAL
|
3030,
3040, 3120, 3130, 3140
|
|
6
|
NLA
|
T28473
|
|
