John Deere - Front Axle, Hub - JD4030 & various
Front
Axle, Hub - JD4030 & various
|
|
|
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.

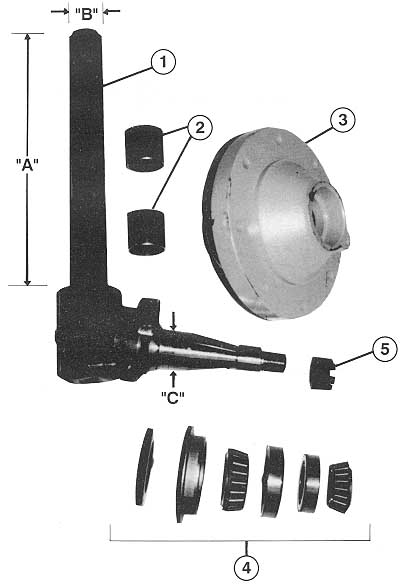

Front
Axle & Hub - JD4030, 4040, 4050, 4230, 4240, 4250, 4430, 4440, 4450
Ref.
|
PART
No.
|
REPLACES
|
NOTES
|
DESCRIPTION
|
1
|
B7681
|
AR81954 (AR69323)
|
4030, 4230, 4430
tractors will require UPRATED B5476 Bearing Kit
|
Axle
A = 374mm B = 44.6mm C = 50mm
|
2
|
NLA
|
R49835
|
X
|
Bush
44.6mm I.D.
|
3
|
N/A
|
R49839 (R52287)
|
X
|
Front
Hub (6 Bolt) ROUND CAP
|
N/A
|
R49841
|
X
|
Front
Hub (8 Bolt)
|
4
|
B5475
|
X
|
ORIGINAL 4030, 4230, 4430
|
Wheel
Bearing Kit (2 req)
45.8mm I.D. Inner Brg.
|
Including
Wear Ring
|
B5476
|
X
|
UPRATED 4030, 4230, 4430
+ All above
|
Wheel
Bearing Kit (2 req)
50mm I.D. Inner Brg.
|
Including
Wear Ring
|
5
|
B7388
|
14H920
|
X
|
Castellated
Nut 1"
|
