Leyland - Engine
NOTE:
Parts shown are BARE-Co parts - original part numbers are shown
for reference only.
|

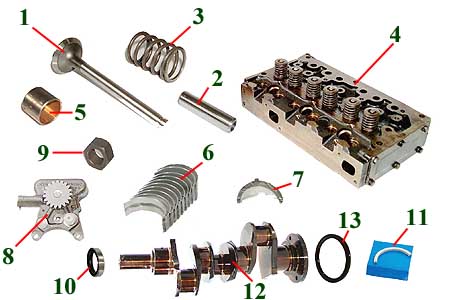

Ref
|
Part No
|
Replaces
|
Description
|
Application
|
|
1
|
|
AJR4041
|
Inlet Valve
|
LEYLAND
245, 253, 502
|
|
|
AJR4042
|
Exhaust Valve
|
|
2
|
|
AJR4040
|
Valve Guide
|
|
3
|
|
7H2401
|
Valve Spring
|
|
4
|
|
AHM2215
|
Cylinder Head Assy
|
|
5
|
|
|
Gudgeon Bush
|
|
6
|
|
AJR4032
|
Con Rod Bearing
Set-Std
|
|
|
AJR4208
|
Con Rod Bearing
Set--.010"
|
|
|
AJR4209
|
Con Rod Bearing
Set-.020"
|
|
|
|
Con Rod Bearing
Set-.030"
|
|
|
AJR4008
|
Main Bearing Set-Std
|
|
|
AJR4009
|
Main Bearing Set-.010"
|
|
|
AJR4010
|
Main Bearing Set-.020"
|
|
|
|
Main Bearing Set-.030"
|
|
7
|
|
|
Thrust Washer Set
|
|
8
|
|
AJR4120
|
Oil Pump
|
|
9
|
|
|
Con Rod Nut
|
|
10
|
|
AHM2214
|
Timing Cover Seal
|
|
11
|
|
AJR4005
|
Rope Rear Seal (2
Req)
|
245, 253
|
|
12
|
|
|
Crankshaft (Rope
Seal)
|
|
|
|
Crankshaft (Lip
Seal)
|
502
|
|
13
|
|
AHM2040
|
Lip Type Rear Seal
|
|
