MF - Internal Hydraulics
MF Internal Hydraulics
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only
3


27
Ref
Part No.
Replaces
Description
Nominal
Pressure
Application
1
B703
204887

Relief Valve

2050 p.s.i.

Te20 to no. 330043 (valve in hyd. pump)

2
B702
883402M94
2750 p.s.i.

MF35, MF65

B2389
884747M91
2950 p.s.i.

MF135, 148, 165, 168, 175, 178, 1080, 1085

3
B705
1053

Control Valve
[B708 includes drilling template to update early pumps]

Te20 (replaces all types)

4
B706
189427M92

MF35, MF65

5
B708
1862486M96

MF135, 148, 165, 168, 175, 178
MF185, 188
prior to MKlll pump only

5A
1617141M91
MF1080 , 1085 (US Model 285)
6
B5208
1681789M91
1870763M92

MF148, MF165, MF168, MF185, MF188
*MKlll pump only MF240, 250, 265, 275
(MF285
Non USA model), 290, 298, 550, 565, 590, 675, 690
MF698, 699, 365, 370, 390, 398, 399, 1080

7
B704
2496

Poppet Valve (4 req.)

Te20 hyd. pump end plate

8
B2374
1810678M91

Valve Chamber Kit (2 req.)
(includes 3 alt circlip types)

All MF models after Te20
i.e. Mkl - Mkll - Mklll pumps

9
B2375
184471M1

Complete Valve Chamber
(includes valves & plugs)

MF35, MF65 (2 req.)

(23mm dia pistons)

10
B6629
1868734M3
888702M1
1868435M3

Complete Valve Chamber
(includes valves & plugs)
Latest design with large dia wire circlips

MF135, 148, 165, 168, 175, 178, 185, 188
MF1080, 1085, MF240, 245, 265, 275, 290
MF 550, 565, 575, 590, 595, 355, 365
370, 390, 398, 399, 675, 690, 698, 699

11
B2379
190799M1

Piston
(2 req.)

MF35, MF65

(23mm dia)

B2380
186038M1

All MF models after MF65

(25mm dia)

12
B2381
892604M1

Piston Ring
(4 req.)

MF35, MF65

(23mm dia)

B2382
897493M1

All MF models after MF65

(25mm dia)

13
B2377
180924M2

Rear Cam Block (without lip)

All MF models after Te20

14
B2378
180925M2

Front Cam Block (with lip)

15

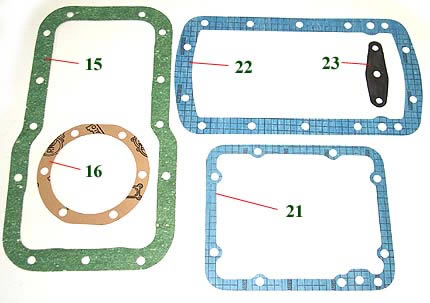

B2383
181408M1

Hyd. Lift Cover Gasket

16
B1839
181217M1

Side Plate Gasket

All non Italian models incl. Te20

17
B1802
894906M91

"O" Ring Kit
Pump + Lift cover

MF35, 65, 135, 148, 165, 168, 175, 178, 185, 188
*MKll - lll pumps use full kit below

B4802
No Equivalent

BARE-Co Full Kit - all internal gaskets + "O" rings
Covering Mkl - Mkll - Mklll pumps + hyd. lift cover

Universal kit covers all (non Italian)
MF models after Te20
i.e. MKl - MKll + MKlll pumps

18
B466
195561M1

Standpipe "O" Ring (317mm)

All (non Italian) models from MF35 onwards

B467
195874M1

Standpipe Backup Ring

19
898643M1

Hydraulic Pump Locating Dowel

MF135, 148, 165, 168, 175, 178, 185, 188
MF1080, 1085
19a
B6136
898937M1
MF240, 245, 265, 275, 290
MF 550, 565, 575, 590, 595, 355, 365
370, 390, 398, 399, 675, 690, 698, 699
20
B468
898229M1

Plain Standpipe (317mm)
Can be used to decommission pressure control on late tractors

MF35, 65, 135, 165, 175, 178

21
B1837
4082

Pump Base Gasket

Te20

22
B1836
7042

Lift Cover Gasket

23
B1840
104275

Ram Cylinder Gasket

24

Piston (2 req.)
25

Pair of Complete Valve Chambers
26

Pair of Cam Blocks
27

Hydraulic Gasket Set
