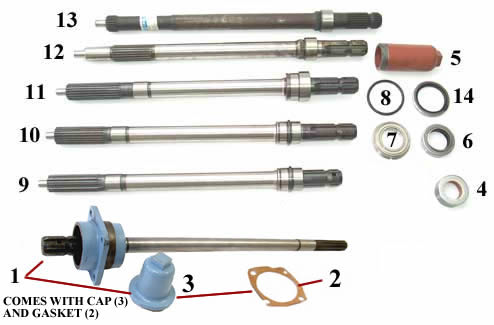

Ref
|
Part
No.
|
Replaces
|
Description
|
Application
|
|
1
|
B280
|
No
equiv.
|
1
3/8" Conversion Shaft Assembly
Includes Cap and Gasket |
Te20
|
|
2
|
B1842
|
1075
|
Gasket |
|
3
|
B2372
|
1105
|
Cap |
|
4
|
B1828
|
1190
|
Seal
38mm I.D.
62mm O.D. 22mm width |
Original
Te20 shaft + some conversion
shafts
|
|
B5205
|
|
Seal
30mm I.D.
62mm O.D. 7mm width |
Very
early B280 1 3/8" Te20
conversion shaft
|
|
B1229
|
|
Seal
42mm I.D.
62mm O.D. 10mm width |
Late
B280 1 3/8" Te20
conversion shaft
|
|
5
|
B2373
|
1868778M1
|
Cap |
MF35,
MF65, MF175, MF178
(all)
MF135 up to 439191
MF148 upto 605134
MF165 new ser. no. series
up to 130773
MF168 up to 255118
MF185 up to 317618
MF188 up to 358839
|
|
6
|
B1829
|
1860325M1
|
Seal |
|
7
|
B2394
|
195498M1
|
Bearing |
|
8
|
B2808
|
195522M1
|
"O"
Ring |
|
9
|
B277
|
181204M92
|
P.T.O.
Shaft |
|
10
|
B5206
|
1868557M93
|
P.T.O.
Shaft |
MF135
after 439191 up to 457632
MF148 after 605134 up to
607570
MF165 after 130773 up to
144682
MF168 after 255118 up to
257922
MF185 after 317618 up to
325655
MF188 after 358839 up to
364984
|
|
11
|
B5207
|
1660288M91
|
All
models above after above ser. no. plus
MF240, 250, 550
|
|
P.T.O.
Shaft
(single speed only) |
Following
models with single speed P.T.O. only
MF265, 275, 285, 290, 565, 575,
590, 675
|
|
12
|
B9056
|
532899M1
|
540rpm
P.T.O. Shaft |
Following
models with two speed P.T.O.
MF265, 275, 285, 290, 565, 575,
590, 675, 690
|
|
13
|
B9057
|
532897M1
|
1000rpm
P.T.O. Shaft |
|
14
|
B5308
|
834216M1
|
Seal |
All
applications after B1829 seal (Ref 6)
|
