Single/ Double Joint Assemblies
Single / Double Joint Assemblies
UNIVERSAL SINGLE JOINT ASSEMBLIES

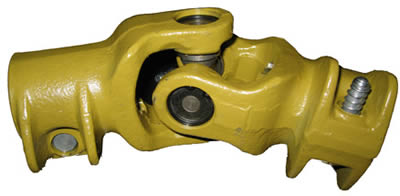

B4066
21 Spline Quick Release Joint for
Tarp Rollers

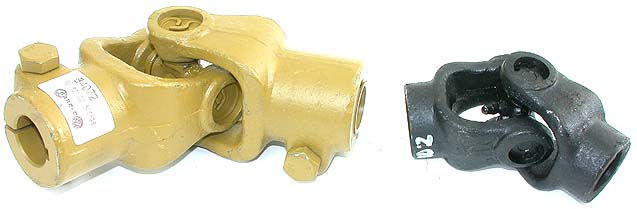

B4072                                                                 AE165002
BORE
SIZE
KEYWAY
WIDTH
JOINT
ASSEMBLY
CROSS
KIT
YOKE
1 3/8 " x
21 Spline
Quick Release Yokes
NA
B4066
A220
A220121
ROUND BORE
SIZE
KEYWAY
WIDTH
JOINT
ASSEMBLY
CROSS
KIT
YOKE
7/8"
1/4"
AE165001
A165
N/A
1"
AE165002
N/A
25mm



A165002
N/A
ROUND BORE
SIZE
KEYWAY
WIDTH
JOINT
ASSEMBLY
CROSS
KIT
YOKE
7/8"
1/4"
Assemble
A110
AE110322
1"
Assemble
AE110325
20mm
6mm
Assemble
A110320
25mm
Assemble
A110325
ROUND BORE
SIZE
KEYWAY
WIDTH
JOINT
ASSEMBLY
CROSS
KIT
YOKE
7/8"
1/4"
Assemble
A220
AE220322
1"
B4072
AE220325
1 1/8"
Assemble
AE220328
1 1/4"
3/8"
Assemble
AE220332
25mm
6mm
Assemble
A220325
30mm
Assemble
A220330

DOUBLE UNIVERSAL COUPLINGS

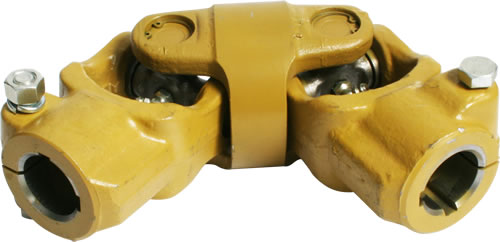

A421835
4 series
35mm Round Bore Clamp Yokes
with 8 and 10mm keyways.

Overall Length 300mm (12")
(A421 cross)

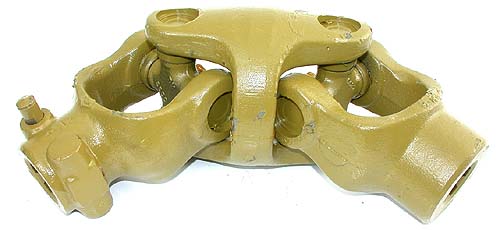

A622801
6 series
1 3/8" x 6 spline yokes
Overall Length 345mm (13 9/16")
(A600 cross)

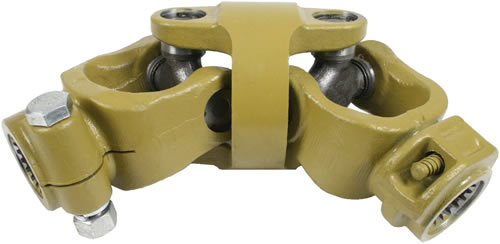

A622820
6 series
1 3/4" x 20 spline yokes
Overall Length 345mm (13 9/16")
(A600 cross)

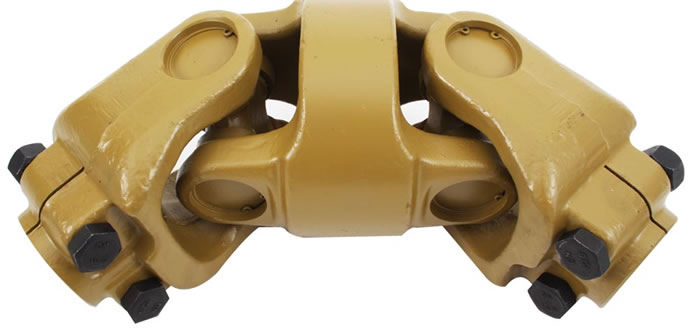

A026820
W2600 series
1 3/4" x 20 spline Clamp Yokes
Overall Length 392mm (15.4")
(A026 cross)



"H" YOKE
A622800 - to suit 6 Series couplings
A421800 - to suit 4 Series couplings
A026800 - to suit W2600 Series couplings
