Wide Angle Joints 2
Wide Angle Shaft Parts
80 Degree(Welded Flange) WIDE ANGLE JOINTS
for LEMON and STAR PROFILE tube


REF
DESCRIPTION
SHAFT SERIES
W2380 series
Standard Lemon Profile tube
W2480 series
Lemon and Star Profile tube
W2580 series
Star Profile Tube

 P675 SERIES
Star Profile Tube

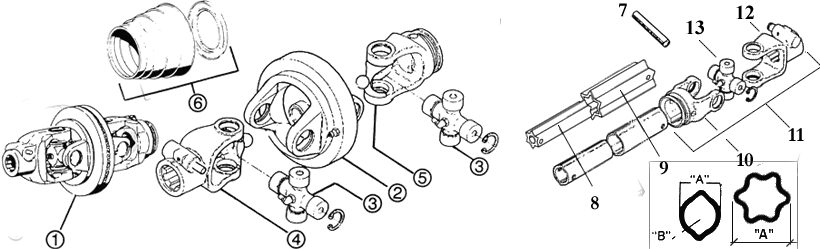

1
JOINT - With 1 3/8" x 6 Spline End Yoke to fit INNER TUBE

AG238001
 =WG2380-113303
("A" = 34.5mm)
Lemon profile tube



AG35001

 =WG2480-113315
("A" = 39.5mm)
Lemon profile tube

AG35004

 =WG2480-113316
("A" = 51mm)
Star Profile Tube

AG36001
 =WG2580-113319
("A" = 51mm)
Star Profile Tube



N/A
JOINT - With 1 3/8" x 21 Spline End Yoke to fit INNER TUBE
N/A
N/A
 =WG2580-113320
("A" = 51mm)
Star Profile Tube

AG26001121

=PJ675-84.63.S5

("A"=61mm)

Star Profile Tube
JOINT - With 1 3/4" x 20 Spline End Yoke to fit INNER TUBE
N/A
N/A
 =WG2580-113321
("A" = 51mm)
Star Profile Tube

AG26001120

=PJ675-696753
JOINT - With 1 3/8" x 6 Spline End Yoke to fit OUTER TUBE

AG238002
 =WG2380-113304
("A" = 41mm)
Lemon profile tube



AG35002
("A" = 48mm)
Lemon profile tube

AG35005
("A" = 61mm)
Star Profile Tube

AG36002
 =WG2580-10.10-S5
("A" = 61mm)
Star Profile Tube



N/A
2
CENTRE ASSEMBLY

AG238000
=21.91.05



AG35000
=35.41.05



AG36000
=36.41.05



AG26000

=26.41.00
3
UNI CROS KIT
(2 required)

A2106
=21.06.00



A3506
=35.06.00



A3606
=36.06.00



A2606
=26.06.01


4
QUICK RELEASE
END YOKE

AG2386138
 =23.38.01
1 3/8" x 6 splines

AG2386121

 =23.21.01
1 3/8" x 21 splines



AG356138
 =35.10.14
1 3/8" x 6 splines

AG356121

 =35.10.16
1 3/8" x 21 splines


AG366138
1 3/8" x 6 splines

AG366121

 =36.10.12
1 3/8" x 21 splines

AG366120

 =36.18.12
1 3/4" x 20 splines

AG266138

=26.84.100



AG266121

=26.84.102



AG266120

=26.84.106


5
INNER TUBE YOKE

AG2386234
 =21.11.810
("A" = 34.5mm)
Lemon profile tube



AG356239
 =35.13.10
("A" = 39.5mm)
Lemon profile tube



AG366251
 =36.13.104
("A" = 51mm)
Star Profile Tube



AG266261
=26.84.106
("A" = 61mm)
Star Profile Tube

OUTER TUBE YOKE

AG2386241
 =21.12.810
("A" = 41mm)
Lemon profile tube



AG356248
 =35.14.10
("A" = 48mm)
Lemon profile tube



AG366261
 =36.14.116
("A" = 61mm)
Star Profile Tube

 N/A
6
SAFETY CONE ASSEMBLY
ASW3100
ASW675
7
ROLL PIN (2 Req)
8
INNER TUBE
1mtr (3ft)

3mtr (9.8ft)

= A344

 =75.11.00
= A344X3
"A" =
"B" =
34.5mm
1 3/8" "
4mm
5/32"


Hollow Bar

Star Profile Tube
1mtr (3ft)

3mtr (9.8ft)

= A510

 =75.44.00
= A510X3
"A" =
"B" =
51mm
2"
4mm
5/32"
OR
Lemon Profile Tube
1mtr (3ft)

3mtr (9.8ft)

= A395

 =75.25.00
= A395X3
"A" =
"B" =
39.5mm
1 1/2"
5mm
3/16"


Hollow Bar

Star Profile Tube
1mtr (3ft)

3mtr (9.8ft)

= A510

 =75.44.00
= A510X3
"A" =
"B" =
51mm
2"
6mm
1/4"


Heat Treated

Star Profile Tube

A616HT

1086mm (43")
"A" =
"B" =
61mm
2 7/16"
6mm
1/4"
9
OUTER TUBE
1mtr (3ft)

3mtr (9.8ft)

= A413

 =75.15.00
= A413X3
"A" =
"B" =
41.3mm
1 5/8"
3mm
1/8"
Star Profile Tube
1mtr (3ft)

3mtr (9.8ft)

= A614

 =75.45.00
= A614X3
"A" =
"B" =
61mm
2 7/16"
4mm
5/32"
OR
Lemon Profile Tube
1mtr (3ft)

3mtr (9.8ft)

= A484

 =75.35.00
= A484X3
"A" =
"B" =
48mm
1 7/8"
4mm
5/32"
Star Profile Tube
1mtr (3ft)

3mtr (9.8ft)

= A614

 =75.45.00
= A614X3
"A" =
"B" =
61mm
2 7/16"
4mm
5/32"
Star Profile Tube
1mtr (3ft)

3mtr (9.8ft)

= A715

 =75.46.00
= A715X3
"A" =
"B" =
71mm
2 13/16"
5mm
3/16"
10
OUTER TUBE YOKE

=21.12.00
 =35.14.00
Lemon profile tube

A35261

 =35.14.100
Star Profile Tube

=36.14.100

=26.14.00

11
OUTER TUBE JOINT
A35005
1 3/8" x 6 Splines
Lemon profile tube

A35002
1 3/8" x 6 Splines
Star Profile Tube

Quick Release Type
A36002
 =36.02.01
1 3/8" x 6 Splines
A36002121
1 3/8" x 21 Splines
A36002120
1 3/4" x 20 Spline
Clamp Type
A36002538
1 3/8" x 6 Splines
A36002521
1 3/8" x 21 Splines
A36002520
1 3/4" x 20 Spline
Quick Release Type
A026002
1 3/8" x 6 Splines
A026002121
1 3/8" x 21 Splines
A026002120
1 3/4" x 20 Spline
Clamp Type
A026002521
1 3/8" x 21 Splines
A026002520
1 3/4" x 20 Spline
12
END YOKE
Quick Release Type
A421138
 =21.10.00
1 3/8" x 6 Splines
A421121
 =21.19.00
1 3/8" x 21 Splines
Clamp Type
A421538
 =21.29.00
1 3/8" x 6 Splines
Quick Release Type
A035138
 =35.10.142
1 3/8" x 6 Splines
A035121
 =35.10.02
1 3/8" x 21 Splines
A035120
 =35.18.02
1 3/4" x 20 Spline
A035134
 =35.18.00
1 3/4" x 6 Spline
Quick Release Type
A036138
 =36.10.00
1 3/8" x 6 Splines
A036121
 =36.10.02
1 3/8" x 21 Splines
A036120
 =36.18.02
1 3/4" x 20 Spline
A036134
 =36.18.00
1 3/4" x 6 Spline
Clamp Type
A036538
 =36.10.08
1 3/8" x 6 Splines
A036521
 =36.10.06
1 3/8" x 21 Splines
A036520
 =36.18.06
1 3/4" x 20 Spline
A036534
 =36.18.04
1 3/4" x 6 Spline
Quick Release Type
A026138
 =26.10.00
1 3/8" x 6 Splines
A026121
 =26.10.02
1 3/8" x 21 Splines
A026120
 =26.18.02
1 3/4" x 20 Splines
A026134
 =26.18.00
1 3/4" x 6 Splines


Clamp Type
 =26.18.102
1 3/4" x 20 Splines
A026534
 =26.18.100
1 3/4" x 6 Splines
13
UNI CROSS KIT

=21.00.00

=35.00.00

=36.00.00

=26.00.03
