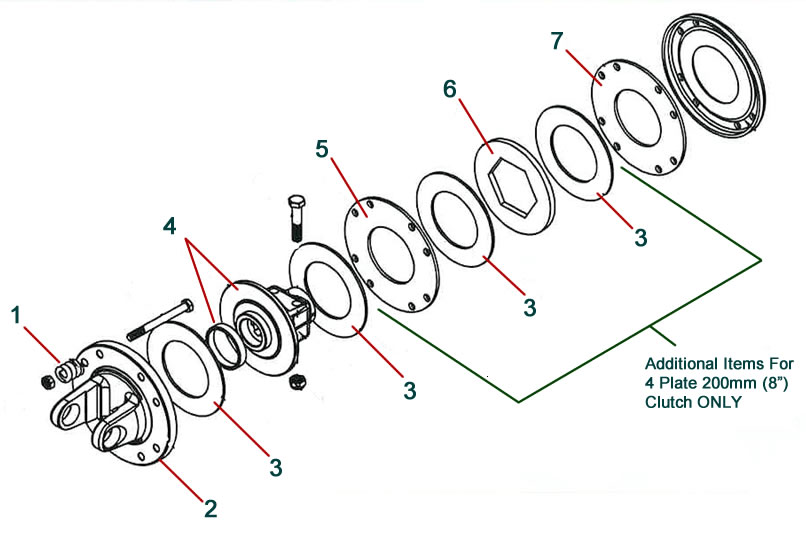

Ref |
Part No |
Description |
Application |
1 |
|
Spring |
All 2 Plate Clutches |
|
W2600 Series 4 Plate Clutch |
| 2 |
|
Clutch Flange Yoke |
4 Series 180mm 7" Clutch |
|
6 Series 200mm 8" Clutch |
|
8 Series 200mm 8" Clutch |
|
W2600 Series 200mm 8" Clutch |
| 3 |
|
Clutch Disk 140 x 85mm 5.5" x 3.46" |
4 Series 2 Plate 180mm 7" Clutch (2 REQ) |
|
Clutch Disk 160 x 85mm 6.3" x 3.46" |
6 Series 2 plate 200mm 8" Clutch (2 REQ) |
|
Clutch Disk 160 x 97mm 6.3" x 3.8" |
W2600 Series, 8 Series2 & 4 Plate
200mm 8" Clutch (2 or 4 REQ) |
| 4 |
|
Drive Hub 1 3/8" x 6 Spline 140mm Dia |
4 Series 2 Plate 180mm 7" Clutch |
|
Drive Hub 1 3/8" x 6 Spline 160mm Dia. |
6 & 8 Series 2 plate 200mm 8" Clutch |
|
Drive Hub 1 3/8" x 21 Spline 160mm Dia. |
6 & 8 Series 2 plate 200mm 8" Clutch |
|
Drive Hub 1 3/4" x 20 Spline 160mm Dia. |
6 & 8 Series 2 plate 200mm 8" Clutch |
|
Drive Hub 1 3/4" x 20 Spline 160mm Dia. |
W2600 Series 4 Plate 200mm 8" Clutch |
5 |
|
Center Pressure Plate 97mm 3.8" ID |
200mm 8" 4 Plate Clutches only. |
6 |
|
Intermediate Drive Plate |
200mm 8" 4 Plate Clutches only. |
| 7 |
|
Outer Pressure Plate |
4 Series 180mm 7" Clutch |
|
Outer Pressure Plate 85mm 3.46" ID |
6 Series 200mm 8" Clutch |
|
Outer Pressure Plate 97mm 3.8" ID |
8 Series, 2600 Series 200mm 8" Clutch |
