P.T.O: 100 mm Combined Freewheel - Safety Clutch
150 mm (6") Safety Clutch
NOTE: Parts shown are BARE-Co parts - original part numbers are shown for reference only.

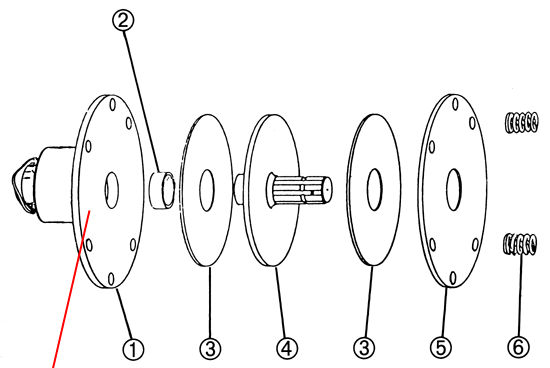

150 mm (6") OD COMBINED FREEWHEEL - SAFETY CLUTCH COMPONENTS
Components suit BARE-Co B9164 Clutch
  Conversion Kit
for Standard 6" Clutch B2301
REF
PART No.
DESCRIPTION
1
Freewheel Base Unit 150mm (6") dia (includes bush)
2
Bush 1 1/8" ID
3
Friction disc 127mm (5") x 45mm (1 3/4") - 2 req.
4
Drive Plate 127mm (5") 1 3/8" x 6 spline
5
Pressure Plate 165mm (6 1/2") dia
6
Spring (6 req)
