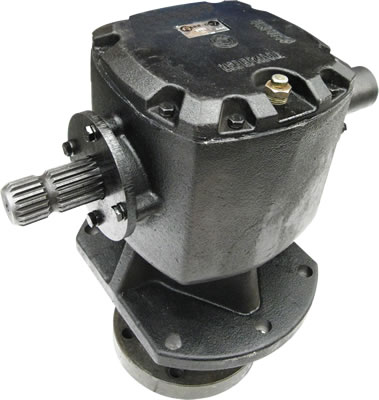

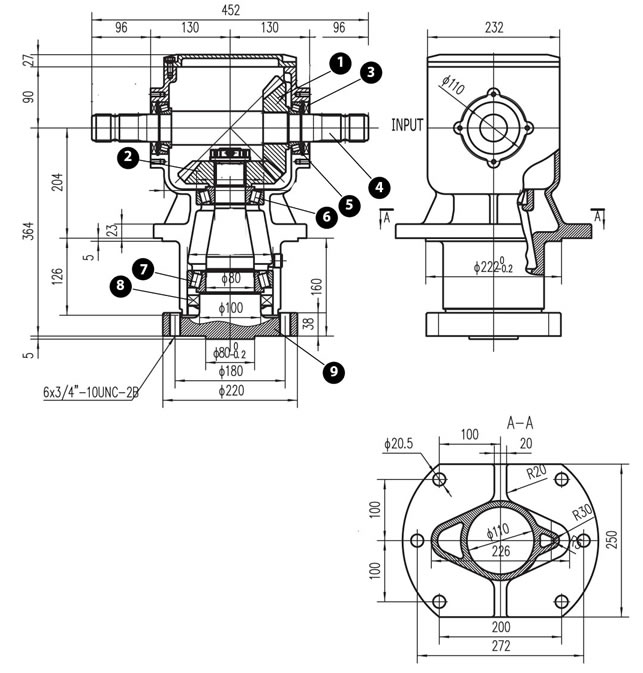

150/200HP Gearbox Part No. B9992 - 1:1.65 ratio Increase Part No. B9993 - 1:1 SPECIFICATIONS HOUSING: SHAFTS: GEARS: SEALS: BEARINGS: OIL: WEIGHT: INPUT SHAFT: 60-45-10 Nodular UNS G51200 UNS G51200 Input - Double Lipped Output - Unitary Lower Seal with Standard internal Lower Seal. Tapered Roller EP-140 176 lbs, 80kg 1 3/4" x 20 spline A = 200 mm (7.87") NOTE: Rotate Gearbox for Reverse Rotation SPARE PARTS REF PART No. DESCRIPTION 1 B3232 Input Pinion 1:1./65 Ratio B3234 Input/ Output Pinion 1:1 Ratio 2 B3233 Output Pinion 1:1./65 Ratio B3234 Input/ Output Pinion 1:1 Ratio 3 B4363 Input Seal 2 Req. 4 B3231 Cross Shaft 5 B4366 Cross Shaft Bearing 2 Req. 6 B4365 Inner Lower Bearing 7 B4364 Outer Lower Bearing 8 B4362 Inner Lower Seal B4361 Outer Lower Seal 9 B3230 Output Shaft
